Merida

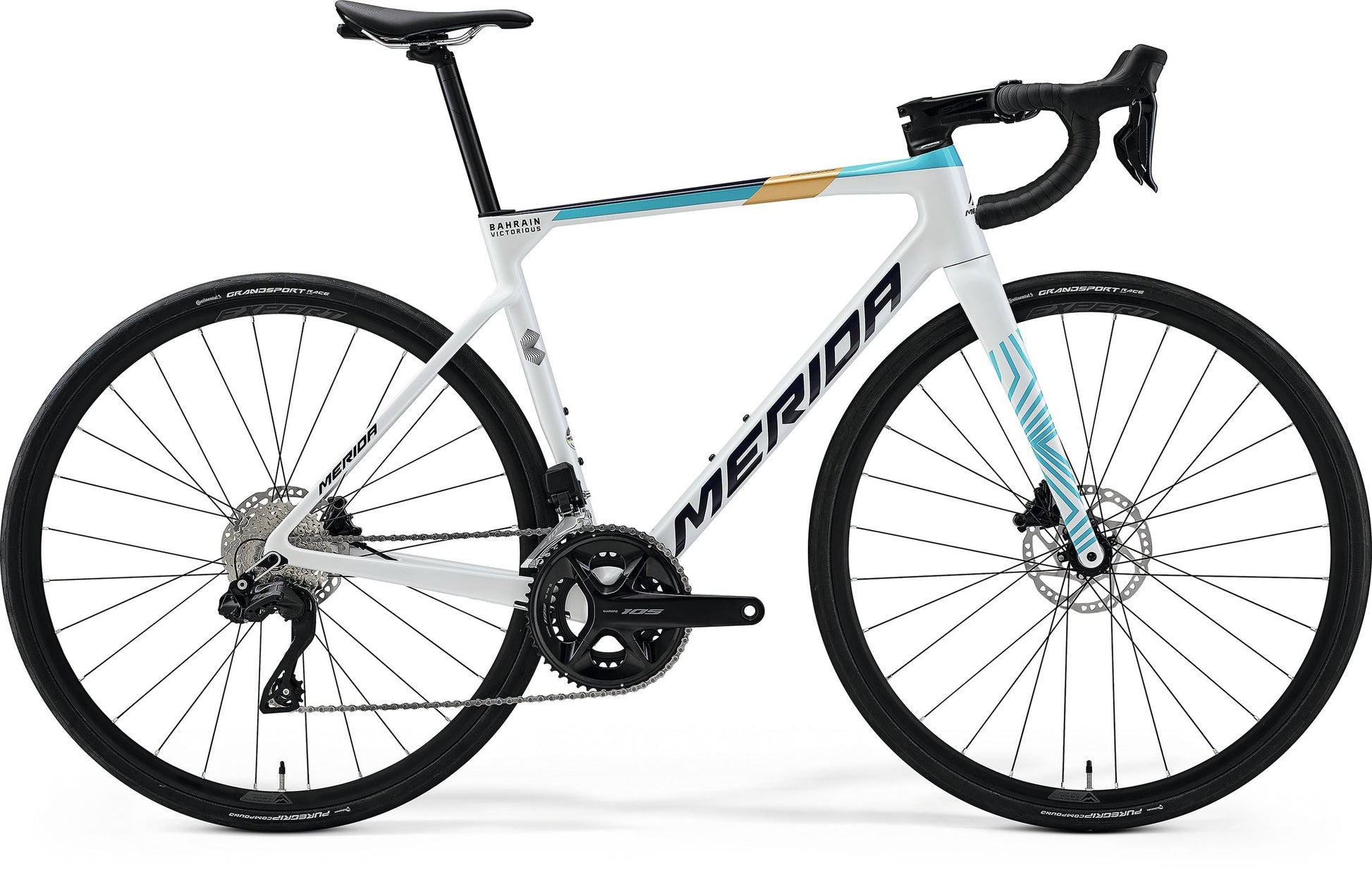

Merida Sculpture 6000 V2 (My24)

Merida Sculpture 6000 V2 (My24)

List price €3.089,00
List price €3.690,00 Price €3.089,00
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.
Color
Size

The latest electronic group of2 105 of Shimano, combined with high quality components of FSA, Continental and Merida, all mounted on the award -winning CF3 sculpture frame, make the 6000 one of the high -end classic road bikes more aerodynamic and comfortable of its range .

Are you looking for a light carbon road bike with a super -precise electronic group, a long list of aerodynamic updates, perfect integration of cables, conformity of the frame at the top of the category, ample space for tires and high quality components? Do you dedicate yourself to racing or stay at the head of the group in fast races in clubs or do you like wavy profiles? The 6000 sculpture equipped with Shimano 105 of2 could be your perfect bike. Our award -winning sculpture is synonymous with "compliance with simplified races" and offers exactly this, whatever the challenge and launchs.

Main features

  • Lightweight CF3 Carbon Frame (approx. 997 g - in size m) with race -provin (identical to reactto) geometry
  • Shimano 105 of2 Electronic 12-Speed ​​Groupset
  • FSA SMR ACR Two-Piece Cockpit
  • Merida Expert SL Handlebar
  • Disc Cooler Technology
  • Merida Expert CC Carbon Seat Post

Specific

CHASSIS Sculpture cf3 v
  • Material: carbon
  • 700x30C Max. Wheelsize
  • 100x12/ 142x12 mm standard Axle
  • Pressfit 86.5
COLOR Teal/Pearl (Team)
Chassis size 3xs, XXS, XS, S, M, L, XL
FORK Sculpture cf3 disc
  • Material: carbon
  • 700x30C Max. Wheelsize
BRAKES Shimano 105
  • Hydraulic disc
Discs Shimano RT64
  • 160 mm
Steering series FSA ACR
Handlebar fold Merida Expert Slii
  • Material: aluminiium
  • 380 mm (XXS), 400 mm (XS), 420 mm (S-M-L), 440 mm (XL)
Handlebar attack FSA SMR ACR
  • Material: aluminiium
  • -6 ° STEM Angle
  • 90 mm-XXS/XS, 100 mm-S, 110 mm-m, 120 mm-l/xl
Knob Merida Road Expert
Derailler Shimano 105 of2
Change Shimano 105 of2
Controls Shimano 105 Disc di2
Char Shimano 105
  • FCR7100, 50-34 Teeth
  • 165 mm-xxs, 170 mm-xs, 172.5 mm-S/m, 175 mm-l/xl
Bra Merida Expert CC
  • 27.2 mm diameter
  • 15 mm setback
  • Carbon
Mors. Bra Merida Expert
SADDLE Merida Expert SL
  • V-Mount
  • incl. Merida minitool
CHAIN Shimano CN-M6100-12
Pignoni package Shimano CS-R7100
  • 11-34 Teeth
  • 12 Speed
Movement series SHIMANO SM-BB71-41B
  • Pressfit 86.5 mm
Rim Merida Expert SL
  • 17 mm Inner Width
  • 22 mm Height
  • Material: aluminiium
  • Tubeless Ready (Tubeless Tape and Valves Not Included)
Hubs VP CLK170F / VP CLK270R
  • 100x12 mm width front hub
  • 28 Spoke Holes
  • Centerlock
  • 142x12 mm Width Rear Hub
  • 28 Spoke Holes
  • Centerlock
Pins Merida Expert SL
  • Including Removable Lever
  • 6/4 mm Allen Key
Rays Double Butted Black Stainless
Tires Maxxis Highrod
  • 700x28c
  • Fold *Tubeless Ready
Overall weight allowed 120 kg
  • Total Weight of Bike, Rider and Luggage

*The manufacturer reserves the right to change the information on the website without notice, including specifications, models, colors and materials.

*The images are for purely indicative purposes and may not correspond to the description of the product.

Geometries

Geometry image chassis

Chassis size 3xs XXS XS Sort M THE XL
Tire size 28" 28" 28" 28" 28" 28" 28"
St reggisella mm. 400 435 458 481 501 521 550
TT Top Tube mm. 505 520 535 545 560 575 590
Cs rear wagon mm 408 408 408 408 408 408 408
Hta gradi steering angle 70.5 70.5 72 72.5 73.5 73.5 74
Is grades corner tube column 75.5 74.5 74 74 73.5 73 73
BD central movement mm. 70 70 70 66 66 66 66
HT HEIGHT TUBE steering mm. 100 105 112 128 140 155 176
Fi Length Forcella mm. 385 385 385 385 385 385 385
R Reachs mm 373 377 383 390 395 400 409
S stacks mm 512 517 529 542 557 571 593
WB Pottense mm 979 985 982 989 990 1000 1010
Sh stand over height mm 700 721 745 765 782 800 823
View complete details
