Haibike Alltrail 5 29

Haibike Alltrail 5 29

€3.199,00
€4.599,00 €3.199,00
Sale Sold out
Tax included. Shipping calculated at checkout.
Color
Cut

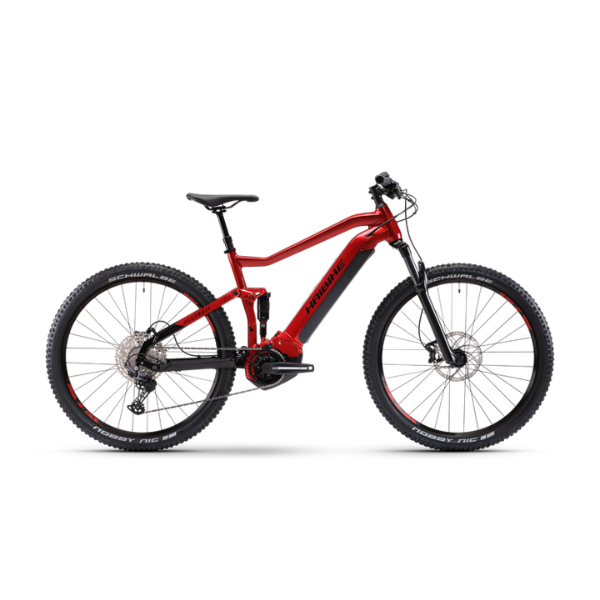

Haibike Alltrail 5 29

Do you like long itineraries and are you looking for a reliable eMTB that simultaneously offers the comfort of a full-size bike and the fluidity of a bike with 29" wheels? Then the AllTrail 5 29 model is the e-bike for you! Equipped with the powerful Yamaha PW-ST motor and a 630 Wh battery elegantly integrated into the down tube, 4-piston disc brakes, Shimano gears, 120 mm travel on the wide Plus tires both front and rear, this bike is a real “ easy rider” for long excursions on light terrain.

Specifications

ENGINE: Yamaha, PW-ST System, 250 Wh, 70 Nm, 25 km/h

DISPLAY: Yamaha, Side Switch, 1.7" LCD, 7 functions

BATTERY: Yamaha, InTube, 630 Wh

FRAME FAMILY: Haibike, FullNine Yamaha i630, Aluminum 6061

FORK: RockShox, 35 Silver, Steel spring, 120 mm travel, Aluminum head tube 1 1/8" - 1 1/2" tapered, 15 x 110 mm Boost thru axle

SHOCK ABSORBER: RockShox, Monarch R, air

CRANK: Haibike Components, The Crank +, Aluminium

BRAKE (FRONT): Tektro, Orion M745, 4-piston disc brake

BRAKE (REAR): Tektro, Orion M745, 4-piston disc brake

VALVE: Presta

RIM: Rodi, Tryp 30, With eyelets, Double wall, Aluminium

LOCKING RING: Internal hex, 34.9 mm

REAR DERAILLEUR: Shimano, Deore M6100

SHIFT CONTROL: Shimano, Deore M6100, Trigger lever

BOTTOM BRACKET: Integrated into the engine

SPROCKET: Shimano, M6100, 10 - 51 teeth

CHAIN: Shimano, CN-M6100

CROWN: Steel, 36 teeth

CHAIN ​​GUIDE: Direct in nylon

BRAKE LEVER: Tektro, Orion M745, Aluminium

BRAKE DISC (FRONT): Tektro, TR203, 203 mm

BRAKE DISC (REAR): Tektro, TR180, 180 mm

TIRE: Schwalbe, Nobby Nic Performance, 65-622, 29 x 2.6 inches

FRONT WHEEL HUB: Haibike Components, TheHub++, Standard 6-hole

REAR WHEEL HUB: Haibike Components, TheHub++, Standard 6-hole

RAYS: Sapim, Leader

HANDLEBAR: Haibike Components, TheBar ++, 780 mm

GRIPS: Haibike, MTB Grips

STEM: Haibike Components, TheStem++, Ahead, 31.8mm, 7.0 degrees

HEADSET: Feimin, Tapered A-Head, Ball Bearings

SADDLE: Selle Bassano, Reko R2 E-Sport

SEAT POST: Aluminum 31.6mm remote dropper seat post

PEDALS: Freeride aluminum pedal, with reflector

TOTAL ALLOWED WEIGHT: 120.0 kg

* The illustration above is an example. We reserve the right to replace individual parts with components of the same or higher quality provided that the type, suitability and purpose of the bicycle is not affected thereby. This may result in a slightly different bike being delivered. At the moment the use of different components is mainly caused by delivery problems due to the Coronavirus pandemic.


Geometries:

FRAME SIZE (E.G. S, M, ...): M, L, XL

FRAME HEIGHT (CM): 44.0cm, 48.0cm, 52.0cm

SEAT TUBE ANGLE: 72.5 degrees, 72.5 degrees, 72.5 degrees

DIRECTION TUBE ANGLE: 73.0 degrees, 73.0 degrees, 73.0 degrees

DIRECTION TUBE LENGTH: 135.0mm, 140.0mm, 145.0mm

DIRECTION TUBE ANGLE: 66.5 degrees, 66.5 degrees, 66.5 degrees

PITCH (HORIZONTAL TOP TUBE): 620.0 mm, 640.0 mm, 660.0 mm

CHAIN ​​LENGTH: 495.0mm, 495.0mm, 495.0mm

BOTTOM BRACKET SAG: -30.0mm, -30.0mm, -30.0mm

WHEELBASE: 1231.0mm, 1252.0mm, 1272.0mm

STACK: 623.0mm, 628.0mm, 632.0mm

REACH: 424.0mm, 442.0mm, 461.0mm
