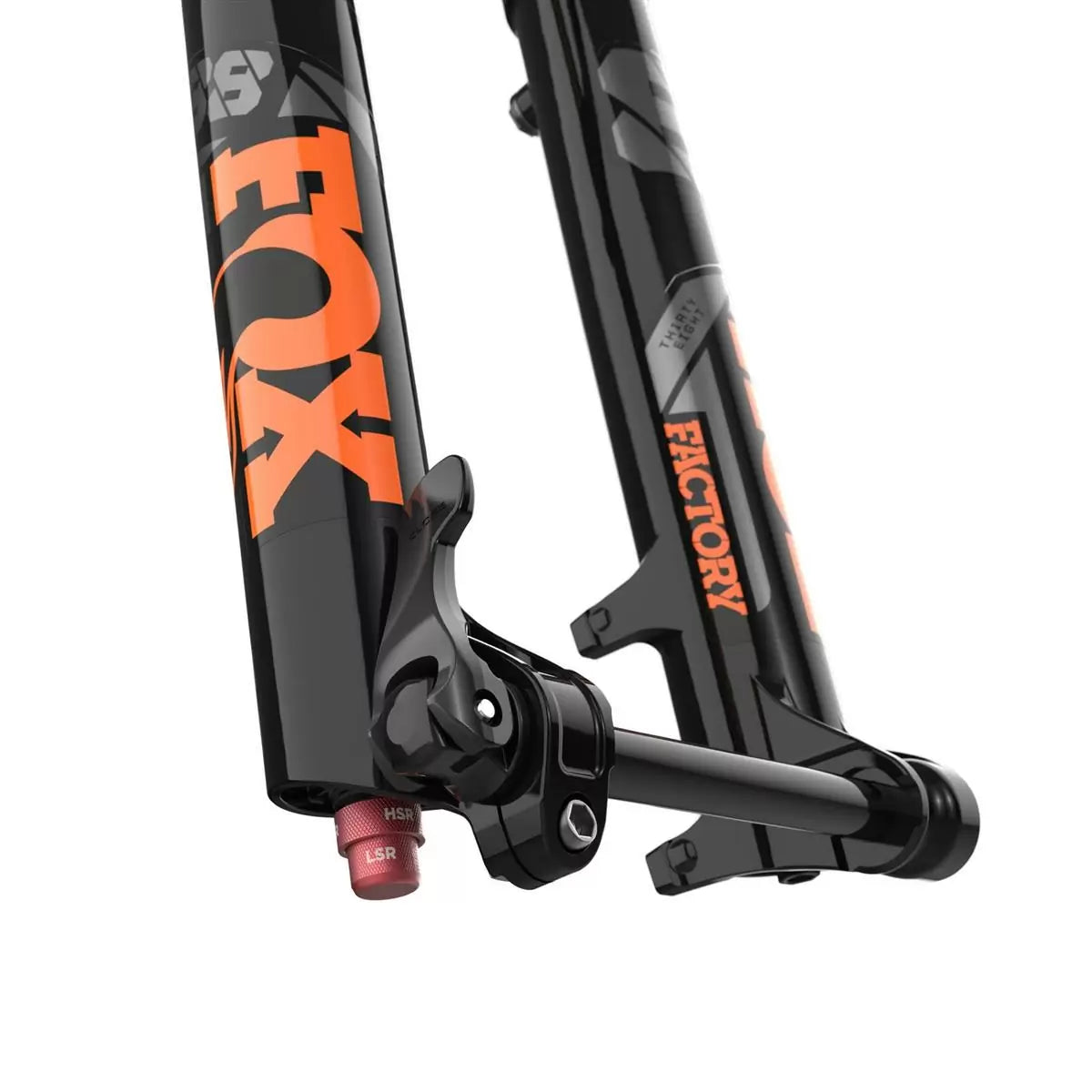

Fox 38 k Float 29 "Factory 170 GRIP2 TAPERED BOOST

The Fox 38 K Float 29 "Factory Boost with Kashima Coat coating, improved grip2 cartridge, is a light suspension fork with a 170mm excursion - designed for enduro pilots.

High rigidity, innovative and light: the new 38 k Float 29 "Factory 170 GRIP2 TAPERED BOOST by Fox Racing

All the revolutionary characteristics of the new 36 are enclosed in a super resistant frame, specially designed for modern and hard enduro races with a long suspension excursion: the new 38 is on the starting line! Whatever obstacles it, he will never get tired of panting to get even more speed.

The award -winning 38 obtains a huge increase in performance thanks to the improved 4 -way adjustable FIT GRIP2 shock absorber. Equipped with the double regulator pending patent Varble Valve Control (VVC) with high and low speed in extension, a better compression damping and a total lower friction, the 38 offers a new level of performance and regulation at the height of the Shock absorbers x2. The high -speed compression phase and the high -speed extension phase are now easily adjustable with 8 clicks. "Factory" says it all. The best technology we have to offer is available in the Factory series models with our original Kashima coating, smooth as butter and ultra resistant. These products are tested in the World Cup. The external steps in the lower part of the jet reduce the weight.

The new 38 are equipped with a new rapid release flower pivot system, waiting for a patent, which combines the advantages of a floating pin with the ease of a quick release without tools. With this system, the spacing is blocked by a floating sleeve, which allows you to repeatedly remove and reinstall the front wheel while maintaining a perfect alignment of the fork. The positioning of the floating sleeve is preset in the factory, so if you are not sure of how to use the floating axle system or you simply don't want to take care of it, you can simply install the front wheel and continue your race.

Modern frames and geometric tendencies require modern solutions for suspension design. The arched design of the brand new 38 was designed to perfectly combine with modern enduro and downhill bicycles. The profiles of the steering tubes have become increasingly large and the offset of the increasingly short forks. The new form of the arch takes into account this need, protruding forward to provide a large space for the steering tube to maximum compression.

Characteristics - Fox Racing 38 K Float 29 "Factory 170 GRIP2 TAPERED BOOST

• The air spring Float Evo improved adds softness

• The Factory series models are equipped with a true Kashima coating

• Innovative elliptical steering tube in the fork crown area for high rigidity with a minimum weight

• Pressure compensation system in the diving tube unit

• Channels for LAir and L'oil in the diving tube unit

• GRIP2 cartridge improved for even better control

• GRIP2 with Double VVC (Variable Valve Control)

• High -speed compression stadium and high -speed extension stadium easily adjustable with 8 shots each

• Frame optimized for weight with an optimal relationship between rigidity and weight and new triple clamp for a greater space in the steering tube area

• The frame optimized for weight offers particularly large advantages with shorter offsets

• 36 more rigid: 31% more rigidity for side forces, 9% more rigidity for brakes and 20% more torsional rigidity

• diameter of the fork crown of 58 mm for an optically uniform passage between the voluminous steering tubes and the fork crown

• Direct assembly to 4 points on the fork for the mudguards

Characteristics of the product

• Use: All Mountain, Trail, Enduro

• Ruot size: 29

• Spring: Air

• Cushioning: GRIP2 FIT regulation

• Adjustments: rebound, hardness of the spring compared to air pressure, grip2 fit with adjustment

• GRIP2 shock absorber adjustments:

  • High speed compression: 8 shots (with VVC)

  • Low -speed compression: 16 clicks

  • High -speed extension: 8 shots (with VMC

• • Low -speed extension: 16 clicks

• Steering: 1.5 "1 1/8"

• Superior pipes: 38 mm

• Disc brake attack: Post Mount (PM7 - Direct Mount 180 mm)

• Maximum rotor size: 230 mm

• Forcellino: Boost passing axis 15x110mm with quick release lever

• Offset: 44 mm

Material

• Steering: Aluminum
• Crown: Aluminum
• Lower plans: Magnesium
• Superior pipes: Aluminum (Kashima coating)
