EXTENSION FOR EXTENSION FOR CAREVELO S5 Disc HB14

EXTENSION FOR EXTENSION FOR CAREVELO S5 Disc HB14

List price €249,99
List price €271,40 Price €249,99
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.

An original spare part of the cervel, of excellent quality, which allows high adaptability and compatibility with a wide range of extensions for aerodynamic handlebar.

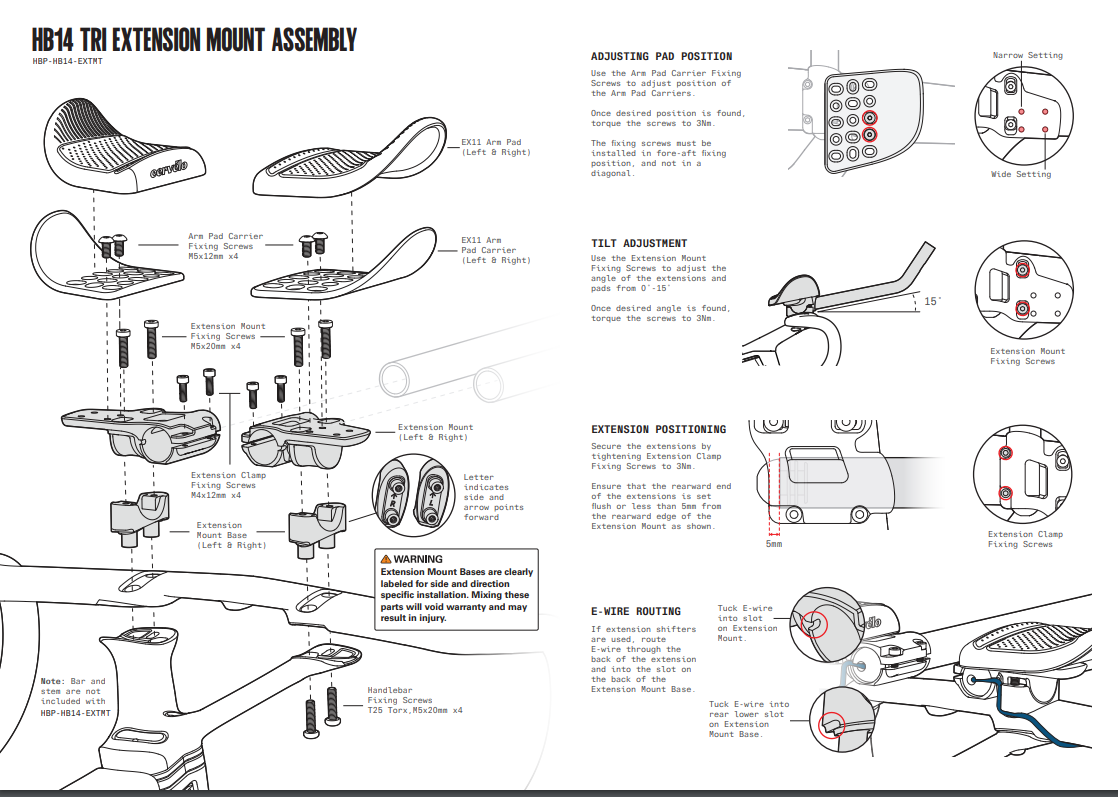

Included: fixing brackets, elbower (armrests), hardware

Padders of the Pad position
Use the fixing screws of the support of the arm pad to adjust the position of the supports of the arm pad. Once the desired position is found, tighten the screws at 3nm. The fixing screws must be installed in a fixing position backwards and not diagonally.

Inclination adjustment
Use the fixing screws of the extension support to adjust the angle of extensions and bearings from 0˚ to 15˚. Once the desired angle is found, tighten the screws at 3 Nm.

Positioning of the extension
Fix the extensions by tightening the fixing screws of the 3 Nm extension terminal.
Make sure that the rear end of the extensions is set by wire or less than 5 mm from the rear edge of the extension support as shown.
E-wire path
If you use the extension controls, pass the electric wire through the rear part of the extension and in the crack on the back of the assembly base of the extension.
