Merida

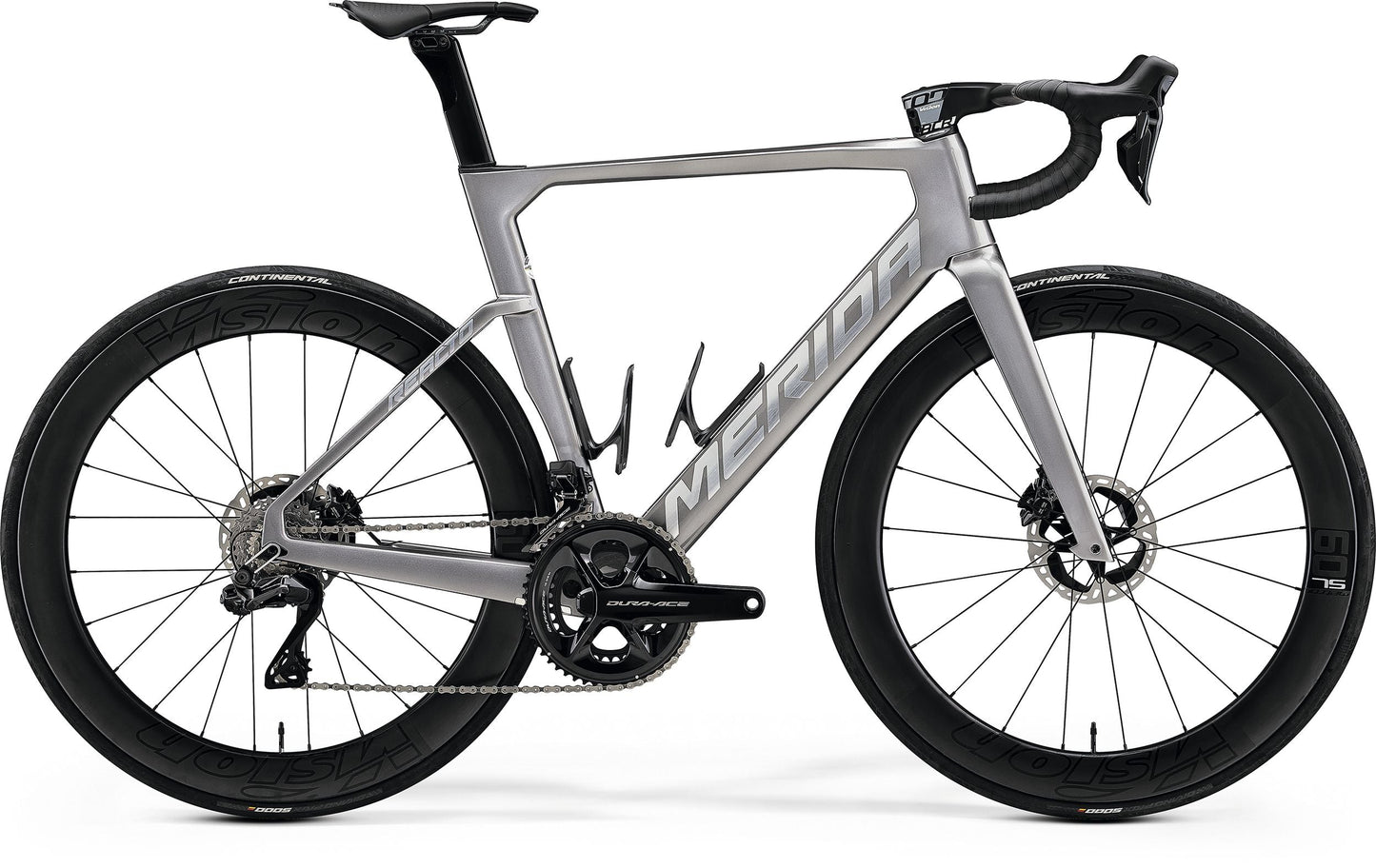

Merida Reacto Team

Merida Reacto Team

€8.389,00
€10.490,00 €8.389,00
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.
Size

Aerodynamic Bicycle Reactus of a high level and reference for the Bahrain Victorious team. Being one of the most winning and rewarded bikes in recent history, the Reactus Team combines reduced weight, exceptional aerodynamic, perfect integration of cables and impressive aerodynamic comfort. Equipped with high -end equipment of Shimano, Vision, FSA and Continental, this bike is equally at ease in high -level races as well as in demanding amateur races.

Specific

CHASSIS REACTO CF5 IV
  • Material: carbon
  • 700x30C Max. Wheelsize
  • 100x12/ 142x12 mm standard Axle
  • BB86.5 Bottom Bracket Standard
COLOR Gunmetal Gray (Flash BCP)
Chassis size XXS, XS, S, M, L
FORK Reactto cf5 iv disc
  • Material: carbon
  • 700x30C Max. Wheelsize
BRAKES Shimano Dura Ace
  • Hydraulic disc
Discs Shimano RT900
  • 160 mm
Steering series FSA ACR
Handlebar fold Merida Team SL 1P Integrated
  • Material: carbon
  • 400 mm (XXS-XS)
  • 420 mm (S-M-L)
  • 440 mm (XL)
Handlebar attack Merida Team One-Piece Integrated
  • Material: carbon
  • 90mm (XXS-XS)
  • 100 mm (s)
  • 110 mm m
  • 120 mm (L-XL)
Knob One-touch prologue
Derailler Shimano Dura Ace Di2
Change Shimano Dura Ace Di2
Controls Shimano Dura Ace Disc di2
Char 165 mm-XXS/XS, 170 mm-S, 172.5 mm-m, 175 mm-l/xl
Bra Merida Team CW
  • Aero Shape
  • 15 mm setback
  • Material: carbon
Mors. Bra Merida Reacto Aero
SADDLE Prologue scratch m5
CHAIN Shimano CN-M9100-12
Char Shimano Dura Ace
  • 52-36 Teeth
  • Power meter
Pignoni package Shimano CS-R9200
  • 11-30 Teeth
  • 12 Speed
Movement series SHIMANO SM-BB92-41B
  • Pressfit 86.5 mm
Pins Merida Expert SL
  • Including Removable Lever
  • 6/4 mm Allen Key
WHEELS Vision Metron 60 SL Clincher TL Disc
  • 100x12 mm width front hub
  • 142x12 mm Width Rear Hub
  • 21 mm Inner Width
  • 60 mm Height
  • Centerlock
  • Material: carbon
  • Tubeless Ready (Tubeless Tape and Valves Not Included)
Tires Continental Grand Prix 5000s TR
  • 700x25c
  • fold
  • Tubeless Ready
MOTOR Disc Cooler F/R
Overall weight allowed 120 kg
  • Total Weight of Bike, Rider and Luggage

*The manufacturer reserves the right to change the information on the website without notice, including specifications, models, colors and materials.

*The images are for purely indicative purposes and may not correspond to the description of the product.

Geometries

Geometry image chassis

Chassis size XXS XS Sort M THE XL
Tire size 28" 28" 28" 28" 28" 28"
St reggisella mm. 470 500 520 540 560 590
TT Top Tube mm. 520 536 545 560 575 590
Cs rear wagon mm 408 408 408 408 408 408
Hta gradi steering angle 70.5 72 72.5 73.5 73.5 74
Is grades corner tube column 74.5 74 74 73.5 73 73
BD central movement mm. 70 70 66 66 66 66
HT HEIGHT TUBE steering mm. 105 112 128 140 155 176
Fi Length Forcella mm. 385 385 385 385 385 385
R Reachs mm 377 384 390 395 400 409
S stacks mm 517 529 542 557 571 593
WB Pottense mm 985 983 990 990 999 1010
Sh stand over height mm 746 771 792 810 826 853
