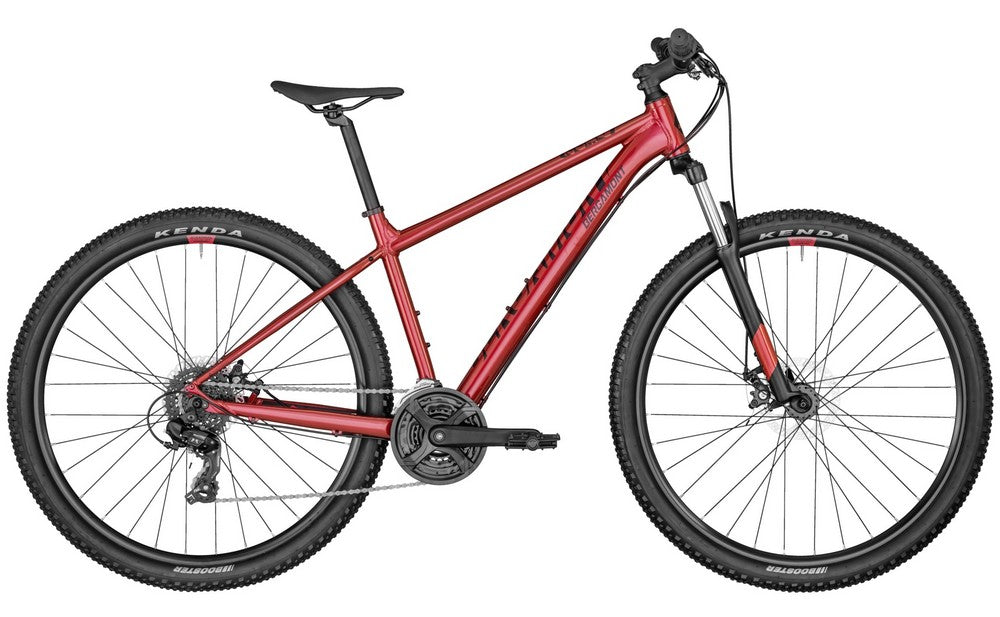

Bergamont Revox 2

Versatile hardtail mountain bike for any terrain. Revox frame with updated geometry and wider size range, increased tire clearance and better compatibility when retrofitting fenders and kickstand.

Specifications

Frame: 29" (27.5"), lite AL-6061 tubing

---

Fork: Zoom 565 disc, 100 mm

---

Rear derailleur: Shimano RD-TY300

---

Front derailleur: Shimano FD-TY500

---

Shifters: Shimano SL-RV200, 3x7-speed, revo-shifter

---

Crankset: Prowheel, 42/34/24t

---

Bottom Bracket: Sealed cartridge, BSA

---

Chain: KMC Z7

---

Cassette: Sunrace CS-M40, 11-34t

---

Brake levers: Tektro, Alloy

---

Brakes: Tektro MD-M280, mechanical disc brake

---

Brake disc: Tektro TR-160-24, 160 mm

---

Handlebar: BGM Comp, riserbar, width: 700 mm

---

Stem: BGM Comp, +/-6°

---

Seatpost: BGM Comp

---

Saddle: Syncros Tofino 2.5

---

Headset: BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"

---

Front hub: BGM Comp, 6-bolt, disc, quick release

---

Rear hub: BGM Comp, 6-bolt, disc, quick release

---

Spokes: steel, black

---

Rim: Alex X20, disc, width: 20 mm

---

Front tire: Kenda Booster, 29x2.40" (27.5x2.40")Tube: Impac SV29

---

Rear tire: Kenda Booster, 29x2.40" (27.5x2.40")Tube: Impac SV27

---

PEDALS: Feimin FP-803

---

Weight in kg (approx.): 14.5

---

Color: greenish anthracite (matt)

---

Frame size: XS7/S7/M7/M9/L9/XL9/XXL9

---

Knobs: BGM Comp

---

Permissible total weight: 115.0 kg

-

We reserve the right to change information on the website without notice, including specifications, models, colors and materials.

Size chart
