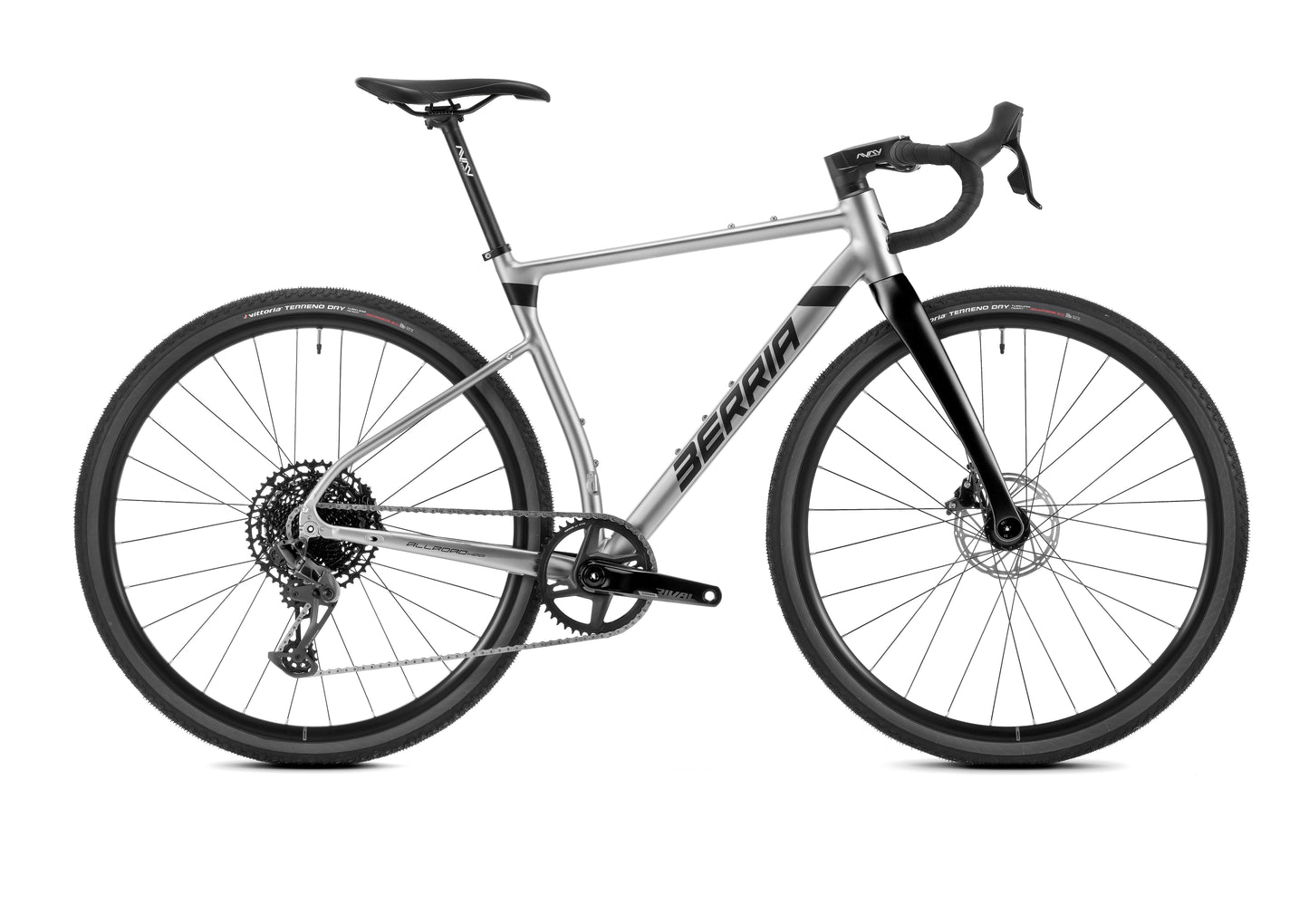

Berria Belarodor HPR 5
Berria Belarodor HPR 5
Explore the least beaten route aboard the new Belardor Allroad. With a new approach to the design of gravel bikes full of innovation, Balador Allroad combines the performance you expect from a Berria bike with the flexibility of a gravel racing bike.
Specific
Components
Chassis Bolador Allroad HPR, Type Gravel 1-2 BGC geometry, treated and polished aluminum 3BS 6061 Hydroforming, completely internal cables system ICS2, semi-integrated steering series OH2S 1-1/2 ", Flat Mount System brake, maximum tire 700x42, passing pivot 12x142mm, weight 1750 g
Fork Belador Allroad Evo, Full Carbon, ICS2 interior cables system, 1-1/8 "-1-1/2" Masked, Flat Mount System Max brake. 160mm disc, Maximun 700x44 tire, Flip-Chip Adust 45-51mm rake, 405mm axis crown, 12x1mm passing pivot, weight 500g
Material Triple thickness system
Handlebar Avanforce 3 Gravel, Lega 6061, /400, 420, 440mm, weight 330g
Bra AVANFORCE AF3, aluminum 6061, 0 offset, 27.2 x 350 mm, weight 255 g
Saddle Selle Royal 2058, steel tracks, width 285 mm, width 145 mm, weight 315 g
Derailler hook Udh universal derailler fork
Transmission
Rear derailler SRAM RD APEX EAGLE D1 Max 52T
Brake lever SRAM APEX D1 SJD Shift-Brake System
Cassette SRAM XG1210, 11-50T, Weight 730g
Chain SRAM APEX CN-APX-D1
Brakes SRAM APEX SJD Shift-Brake System Flatmount 160/F and 160/R Centerlock Rotor
Char SRAM APEX D1 AL, DUS WIDE, 44T, 170-172.5-175
WHEELS
Tires Victory Territory Dry 40, full fold, weight 698g
Wheel Mavic Allroad, S6000 aluminum circle, 22mm height, 23mm inner width, max. Weight 120 kg, weight 1890 g
*The manufacturer reserves the right to change the information on the website without notice, including specifications, models, colors and materials.
*The images are for purely indicative purposes and may not correspond to the description of the product.
Size table
XS | Sort | M | THE | XL | |
Height (cm) | 154-165 cm | 165-176 cm | 176-185 cm | 185-192 cm | +192 cm |
Geometries
XS | Sort | M | THE | XL | ||
1 | Seattube Length | 460 | 484 | 508 | 532 | 556 |
2 | TopTube Length | 525 | 545,2 | 555 | 569,4 | 589,3 |
3 | Headtube Length | 100 | 115 | 131 | 148 | 166 |
4 | Chainstay Length | 431 | 431 | 431 | 431 | 431 |
5 | Bottom Bracket Drop | 77 | 77 | 75 | 75 | 75 |
6 | Wheelbase | 1011,5 | 1017,8 | 1024,3 | 1034,3 | 1049,6 |
7 | Headtube Angle | 70 | 70,5 | 71 | 71,5 | 72 |
8 | Effective Seatbo Angle | 74,5 | 74 | 73,5 | 73 | 73 |
9 | Reach | 376,4 | 381,7 | 387,1 | 396,1 | 410,3 |
10 | Stack | 535,9 | 551,9 | 566,9 | 585,1 | 604,2 |
